| Large Format 1/1.8กฐ M12 Lenses |
| Large Format 1/1.8" M12 Lenses are more and more commonly used for different applications, such as motion detective, VR cameras, UAVs (Unmanned Aerial Vehicle) and some surveillance applications. Large Format Lenses is allowed higher definition for high resolution for industrial or commercial cameras required. |

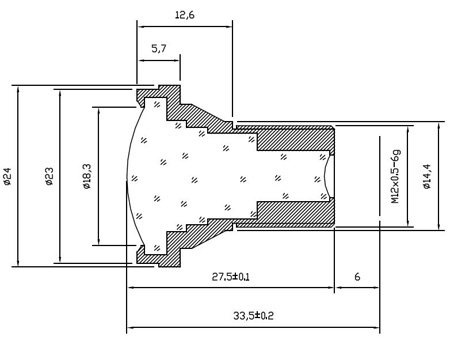

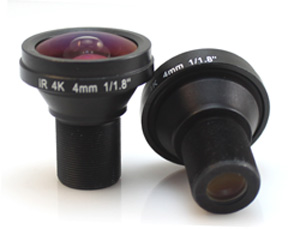

| L1936 4mm F2.2 1/1.8" 8MP M12 Lenses |
 |
|
|
Model No.
|
L1936
|
|
Focal Length
|
4.0mm
|
|
Relative Aperture
|
F2.2
|
|
Sensor Size
|
1/1.8"
|
|
Flange Back Focal Length
|
6.0mm
|
|
Diagonal Angle of View
|
D x H x V= 133° x 112° x 61°
|
|
Min. Operation Distance
|
0.3m
|
|
Mount Size
|
M12 x 0.5
|
|
TTL
|
33.5mm
|
|
Optical Distortion
|
<-53% in the edges
|
|
Construction
|
Metal and Glass
|
|
Wavelength design
|
400-850nm, IR Corrected
|
|
Optical Filters (optional)
|
IR Cutoff Filters or other filter for choice
|
|
| This L1936 4mm lens is made of all metal and glass, for indoor and outdoor rough environments. Standardly with no filter embeded, as it is designed with IR corrected function, which can be used for visible light or IR light applications. |
|
|
| |
|
|
