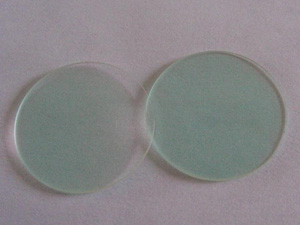

940nm Day Night Filter


Specifications:
Centre Wavelength(CWL):
940nm, and visible light range
FWHM(50% point):
940+/-20nm or +/-30nm

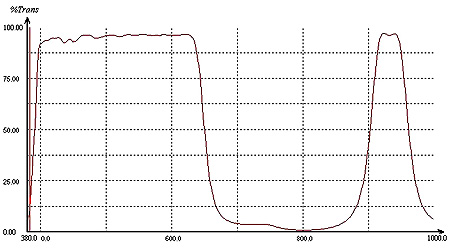

Transmission:
Tmin>85% at CWL=940nm, and 400-680nm.
Size:
customized, from 2x2mm to Dia. 110mm, +/-0.1mm
Thickness:
0.3~3mm
Surface quality:
60/40~20/40
Clear aperture:
>90%, or full surface coatings
Substrate:
vary customized, such as B270, BK7, crystal or sodalime glass etc.
¡ñ One filter for day and night surveillance by blocking most UV light and NIR light.
¡ñ FWHM at the centre 940nm can be chosen, such as +/-15nm, +/-20nm or +/-30nm.

940nm Day Night Filter is a common filter used for day night imaging systems, usually for CCD sensor, which is sensitive for a wide spectrum for image forming. This filters allow the full visible light transmit in the daytime to form a color image, and transmit the 940nm NIR light at night while 940nm LED light source power on, to form a black and white image. As this filter block most of NIR light except the 940+/-20nm or +/-30nm range, the color image in the daytime can be clearer. Compared to 850nm day night filter, 940nm day night filter can be much helpful to reduce the red light transmission.

Application: day night surveillance camera, biomedical identification, video door phone, video roll machine, digital telescope optical systems etc.
