| 850nm Day/Night Filter or 850nm IR Filter |
| |
|
Specifications:
|
Centre Wavelength(CWL):
|
850nm, and visible light range
|
|
FWHM(50% point):
|
850+/-20nm or +/-30nm
|
|
Transmission:
|
T>85% at CWL=850nm, and 400-680nm.
|
|
Size:
|
customized, from 2x2mm to Dia. 110mm, +/-0.1mm
|
|
Thickness:
|
0.3~3mm
|
|
Surface quality:
|
60/40~20/40
|
|
Clear aperture:
|
>90%, or full surface coatings
|
|
Substrate:
|
vary customized, such as B270, BK7, sodalime glass etc.
|
|

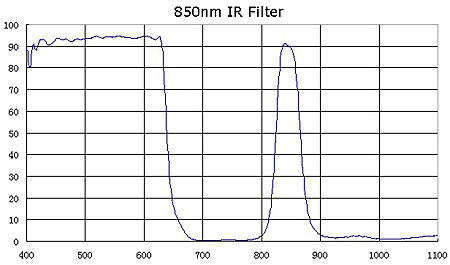

.jpg) |
| |
|
|
|
850nm Day Night Filter is a common filter used for day night imaging systems, usually for CCD sensor, which is sensitive for a wide spectrum for image forming. This filters allow the full visible light transmit in the daytime to form a color image, and transmit the 850nm NIR light at night while 850nm LED light source power on, to form a black and white image. As this filter block most of NIR light except the 850+/-20nm or +/-30nm range, the color image in the daytime can be clearer.
Application: day night surveillance camera, biomedical identification, video door phone, video roll machine, digital telescope optical systems etc. |
