| Soakable/Immersible Endoscope Optical Couplers |
 |
Endoscope Optical Coupler, is a CCD HD C mount objective Lens, used to connect the endoscope and the camera head of the endoscope video camera system, to change the optical signal from said front end lens into image that the CCD sensor of said camera head can recognize and process.
LenOpTec have engaged in developing the good quality products for many years and from 2009, the full series of the couplers have come out and praised by our old partners. The main features are shown as below:
|
1. Good waterproof and air-tightness design to reach the soakable and immersible functions for easy cleaning and sterilization.
2. Special treatment inside of the coupler to reduce the air, which makes it not easy to be fogged.
3. High optical definition desgined for better use with 1280*1024pixels CCD sensor. More than 200pixels/mm at the fringe of the 1/2" field.
4. Improved the noise light elimination by special design. A nice center of the optical system has been improved to ensure the good image quality.
5. Standard C or CS mount design, compatible with many different camera heads from RICHARD WOLF,
KARL STORZ and PANASONIC, Stryker, Sopro-Comeg, Watec etc.
6. Special treatment for the mechanical structures to bring a good handle and abrasion resistance. |
|
Different focal length Endoscope couplers / adapters for choice
|
| |
 |
 |
 |
|
Model No.
|
LEOA14
|
LEOA18
|
LEOA20
|
|
Focal Length (mm)
|
14
|
18
|
20
|
|
Resolution (pixels)
|
1280×1024
|
1280×1024
|
1280×1024
|
|
Format
|
1/2"
|
1/2"
|
1/2"
|
|
Mount
|
CS
|
C/CS
|
C/CS
|
|

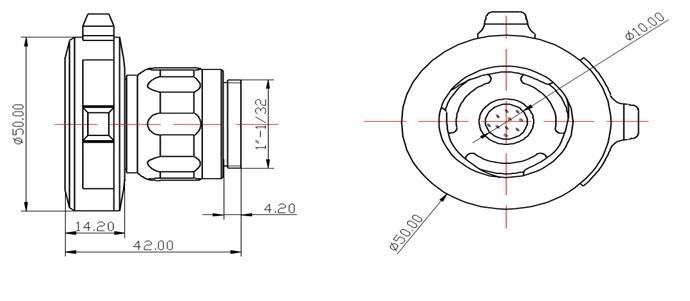

Dimension (mm)
|
φ54×L36
|
φ50×L42
|
φ50×L42
|
|
| |
 |
 |
 |
|
Model No.
|
LEOA22
|
LEOA25
|
LEOA28
|
|
Focal Length (mm)
|
22
|
25
|
28
|
|
Resolution (pixels)
|
1280×1024
|
1280×1024
|
1280×1024
|
|
Format
|
1/2"
|
1/2"
|
1/2"
|
|
Mount
|
CS
|
C/CS
|
C/CS
|
|
Dimension (mm)
|
φ50×L42
|
φ50×L42
|
φ50×L42
|
|
| |
|
 |
|
|
Model No.
|
LEOA32
|
LEOA35
|
|
Focal Length (mm)
|
32
|
35
|
|
Resolution (pixels)
|
1280×1024
|
1280×1024
|
|
Format
|
1/2"
|
1/2"
|
|
Mount
|
For single or 3 CCD
|
For single CCD
|
|
Dimension (mm)
|
φ50×L42
|
φ50×L42
|
|
|
|
|
|
Trade Information:
1. Guarantee: Every model has the same good quality and will be tested before shipment. All
products supplied by LenOpTec come with one year guarantee for maintenance.
2. Trade Terms: FOB China
3. Shipment: UPS/DHL/TNT for choice
4. Lead Time: In 2 days after payment confirmed for samples less than 10pcs; in 7 days for
quantity less than 50pcs; Monthly Capacity at 1000pcs.
5. Payment: T/T advanced or L/C at sight.
6. Other services: Usually we offer no-brand/neutral packing. It is available for label OEM offered or
designed by customers.
|
