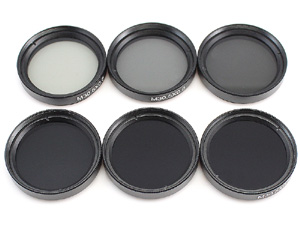

Neutral Density Filters, ND Filters

Neutral Density Filters, usually called ND Filters, is a type of grey or dark grey glass filter, which function is to reduce the transmission rate of the optical intensity in full spectrum, with no change to color balance. ND filter is a very important kit in photography. By using different OD value filters, photographer can catch the expected perfect images in bright circumstances, while the existed aperture of the camera is fixed.
ND filters, reducing the light intensity to image sensor, is very helpful for various applications, such as surveillance or monitor optical systems in bright environments, optical measuring equipments or some optical devices with bright positive light sources.



Transmission Rates of different OD value ND Filters:
(The higher OD value of ND filters, the darker grey of apperance)
Optical Density (OD)
Relative Aperture reduction (F No.)
Transmission
0
0
100%
0.3
1
50%
0.6
2
25%
0.9
3
12.5%
1.2
4
6.25%
1.5
5
3.125%
1.8
6
1.563%
2.1
7
0.781%
2.4
8
0.391%
2.7
9
0.195%
3.0
10
0.098%
3.3
11
0.049%
3.6
12
0.024%
3.9
13
0.012%

Lenoptec engages in developing various optical products to offer the integrative solution for a optical system. Each system or device may require the unique specifications to reach the expected function, to help the device reach a most compact or compatible structure. With our experienced team and full equipments, we are trying to sastify our customer's demands by best services and cost-effective solutions.
