| Wide Angle of View Low Distortion M12 Lens, Fisheye Board Lenses |
|
Wide Angle of View Lens, also called Fisheye Lens, is designed with a very short focal length, less than 2.8mm, to reach a wide monitor area in a short distance. This series is also with aspherical optical elements design to reach a high resolution and also a low distortion, less than -5% in the edge. These low distortion lenses design can help devices to get the more actual images for applications, such as detective or measuring devices.
|
|
|
|

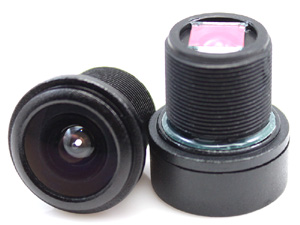

Model No.
|
L1120
|
|
Focal Length
|
1.25mm
|
|
Relative Aperture
|
F2.2
|
|
Sensor Size
|
1/4"
|
|
Flange Back Focal Length
|
2.5mm
|
|
Angle of View
|
H x V=170° x 136° for 1/4”
|
|
Min. Operation Distance
|
0.2m
|
|
Mount Size
|
M12 x 0.5
|
|
TTL
|
18mm
|
|
Optical Distortion
|
<-3% in the edges
|
|
Construction
|
Aluniminum + Glass
|
|
Optical Filters (optional)
|
IR Cutoff Filters or other filter for choice
|
|
|
|
| |
|
|
 |
|
|

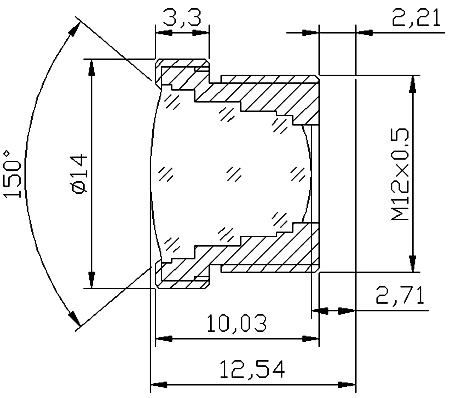

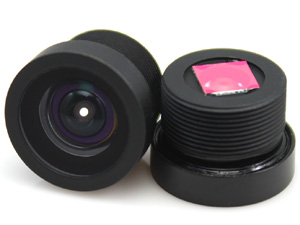

Model No.
|
L1119
|
|
Focal Length
|
1.85mm
|
|
Relative Aperture
|
F2.0
|
|
Sensor Size
|
1/3" or 1/4"
|
|
Flange Back Focal Length
|
2.21mm
|
|
Angle of View
|
H x V=115° x 90° for 1/3”
|
|
Min. Operation Distance
|
0.2m
|
|
Mount Size
|
M12 x 0.5
|
|
TTL
|
12.54mm
|
|
Optical Distortion
|
<-5% in the edges
|
|
Construction
|
Glass and Plastic Aspherical optical lens
|
|
Optical Filters (optional)
|
IR Cutoff Filters or other filter for choice
|
|
 |
| |
| Teams in Lenoptec are trying to offer the most suitable optical products for our customer's special applications, to help the devices reach the some specific functions. Should any customized specifications required, please tell us anytime. |
|
|
