| Megapixels Low Distortion M12 Small Lenses, or called HD Low Distortion M12 Lenses, are designed with high definition for multi megapixels sensors from 2MP to 5MP of CCD or CMOS, specially with low distortion in the edges for some special applications. |
| Item No. |
EFL |
F No. |
Sensor |
FOV (HxV) |
Mount |
Resolution |
Distortion |
Structure |
| L1121 |
4.7mm |
F3.0 |
1/3" |
59°x44° |
M12x0.5 |
3MP |
<-0.5% |
Metal + Glass + Plastic |
| L1220 |
5.2mm |
F2.3 |
1/3" |
60°x45° |
M12x0.5 |
3MP |
<-2% |
Plastic + Glass + Plastic |
| L1125 |
8.9mm |
F2.0 |
1/2" |
47.5°x36° |
M12x0.5 |
2MP |
<-0.3% |
Metal + Glass |
| L1126 |
9.6mm |
F2.8 |
1/2" |
40°x30° |
M12x0.5 |
2MP |
<-2.5% |
Metal + Glass |
|
|

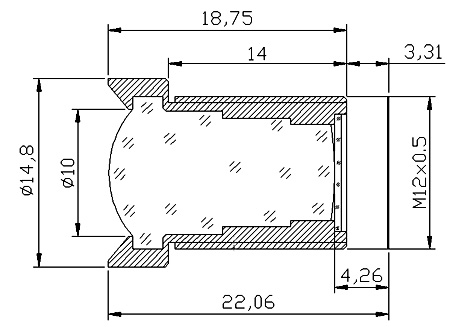

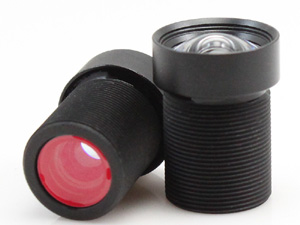

L1221 4.7mm F3.0 1/3" 3 megapixels Low Distortion M12 Lens To the Top
|
 |
|
|
Model No.
|
L1221
|
|
Focal Length
|
4.7mm
|
|
Relative Aperture
|
F3.0
|
|
Sensor Size
|
1/3"
|
|
Flange Back Focal Length
|
3.31mm
|
|
Angle of View
|
D x H x V=70° x 59° x 44°
|
|
Min. Operation Distance
|
0.2m
|
|
Mount Size
|
M12 x 0.5
|
|
TTL
|
22.06mm
|
|
Optical Distortion
|
<-0.5% in the edges
|
|
Construction
|
Aluminum, Glass and Plastic aspherical lens
|
|
Optical Filters (optional)
|
IR Cut Filter for Visible light image system
|
|
|
|

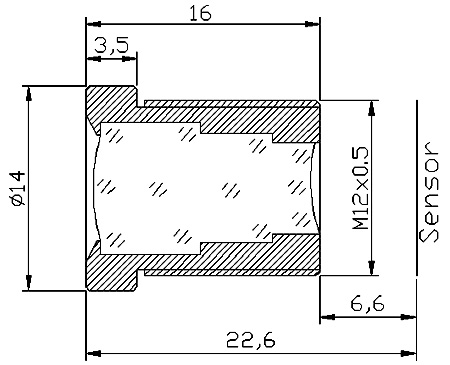

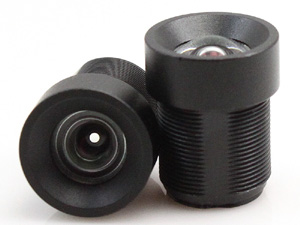

| L1220 5.2mm F2.3 1/3" 3MP Low Distortion HD M12 Lens To the Top |
 |
|
|
Model No.
|
L1220
|
|
Focal Length
|
5.2mm
|
|
Relative Aperture
|
F2.3
|
|
Sensor Size
|
1/3"
|
|
Flange Back Focal Length
|
6.6mm
|
|
Angle of View
|
D x H x V=75° x 60° x 45°
|
|
Min. Operation Distance
|
0.2m
|
|
Mount Size
|
M12 x 0.5
|
|
TTL
|
22.6mm
|
|
Optical Distortion
|
<-2% in the edges
|
|
Construction
|
Plastic Barrel, Glass and plastic lens
|
|
Optical Filters (optional)
|
IR Cutoff Filters for visible light systems
|
|
 |

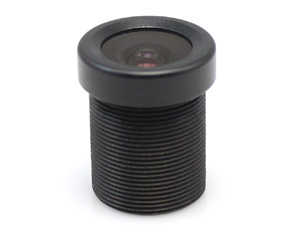

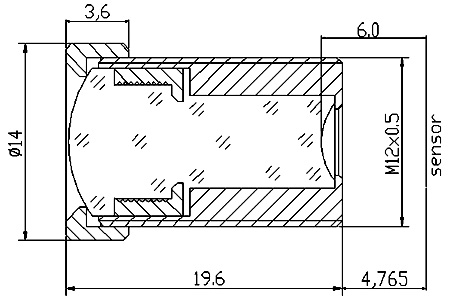

| L1125 8.9mm F2.0 1/2" 2MP Low Distortion NIR M12 Lens |
 |
|
|
Model No.
|
L1125
|
|
Focal Length
|
8.9mm
|
|
Relative Aperture
|
F2.0
|
|
Sensor Size
|
1/2"
|
|
Flange Back Focal Length
|
4.765mm
|
|
Angle of View (Horizontal)
|
47.5°
|
|
Min. Operation Distance
|
100mm~Infinity
|
|
Mount Size
|
M12 x 0.5
|
|
TTL
|
24.37mm
|
|
Optical Distortion
|
<-0.3% in the edges
|
|
Construction
|
Aluminum and Glass
|
|
Optical Filters (optional)
|
For Visible light and NIR light system, IR confocal
|
|
 |

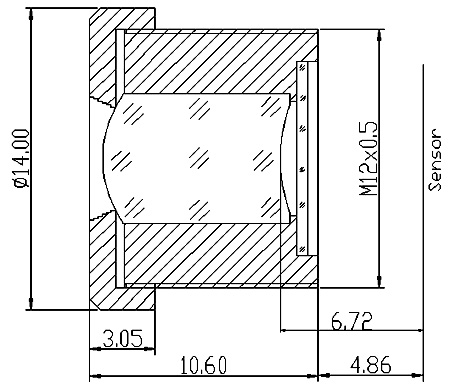

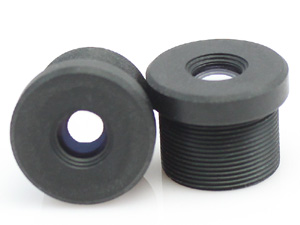

| L1126 9.6mm F2.8 1/2" 2MP Low Distortion M12 NIR Lens |
 |
|
|
Model No.
|
L1126
|
|
Focal Length
|
9.6mm
|
|
Relative Aperture
|
F2.8
|
|
Sensor Size
|
1/2"
|
|
Flange Back Focal Length
|
4.86mm
|
|
Angle of View (Horizontal)
|
40°
|
|
Min. Operation Distance
|
0.2m
|
|
Mount Size
|
M12 x 0.5
|
|
TTL
|
15.46mm
|
|
Optical Distortion
|
<-2.5% in the edges
|
|
Construction
|
Aluminum and Glass
|
|
Optical Filters (optional)
|
For Visible light and NIR light system, IR confocal
|
|
 |
| Teams in Lenoptec are trying to offer the most suitable optical products for our customer's applications, to help the devices reach the some specific functions. Should any customized specifications required, please tell us anytime. |
