| 808nm Interference Filter, 808nm Laser bandpass Filter |
-
 |
|
Specifications:
|
Transmission:
|
T>85% @ CWL=808nm, +/-3nm
|
|
Reflection:
|
Tave<1% @ 400-1100nm
|
|
Size:
|
Customized, from 2x2mm to Dia. 75mm, +/-0.1mm
|
|
Thickness:
|
0.3~3mm
|
|
Surface quality:
|
60/40~40/20
|
|
Clear aperture:
|
>90% or full surface coatings
|
|
Substrate:
|
vary customized, such as B270, BK7, crystal or sodalime glass etc.
|
- Special design for 808nm LED or Semiconductor application
- Reflective mirror with high transmission for 808nm laser light.
|
| |
|
|
|

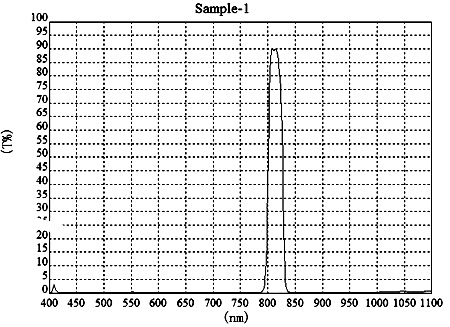

808nm FWHM=24nm Interference Filter, is specially designed for the devices with 808nm semiconductor light source, with high transmission at T>85% and deep blocking rate at OD<2.
It is a reflective mirror with single substrate with standard thickness at 0.55mm.
Applications are various, such as laser night vision device, 808nm laser measuring detector and other optical devices with 808nm semiconductor.
|
|
 |
|
|
