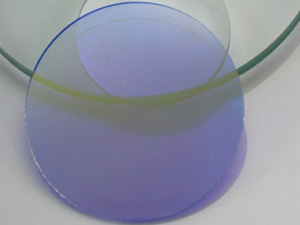

| 440nm +/-20nm Visible Narrow Bandpass Filter, Blue Filter |
.jpg) |
|

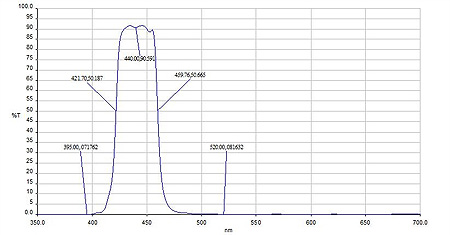

Specifications:
|
Centre Wavelength(CWL):
|
440nm+/-2nm, T=50% @ 420nm, 460nm
|
|
FWHM(50% point):
|
40+/-2nm, 420-460nm
|
|
Transmission:
|
Tave>85% at CWL=420nm. Tave<0.1% @ 200-400nm, 500-1100nm
|
|
Size:
|
customized, from 2x2mm to Dia. 110mm, +/-0.1mm
|
|
Thickness:
|
0.3~3mm
|
|
Surface quality:
|
60/40~20/40
|
|
Clear aperture:
|
>90%, or full surface coatings
|
|
Substrate:
|
vary customized, such as B270, BK7, crystal, float or sodalime glass etc.
|
¡ñ Singlet filter with coatings
¡ñ Hard coatings to resist scratch and long term operation
¡ñ Ion source assisted coating to reach a heat resistance, such as 70 C-degree, small temperature drift.
¡ñ Deep Cutoff @ Tave<0.1%
¡ñ Compatible with 440nm laser LED light or 440nm Blue Light-emitting Diode.
|
| |
|
|
|
440+/-20nm Narrow Bandpass filter, only allow the visible blue range spectrum transmit, while deeply cut off the other spectrums, also called Blue Narrow Bandpass Filter or Blue interference filter.
Application: 440nm laser LED light or 440nm Blue Light-emitting Diode, medical inspection device, fluorescence microscope or analytical instrument, printing ink identification.
|
|
.jpg) |
|

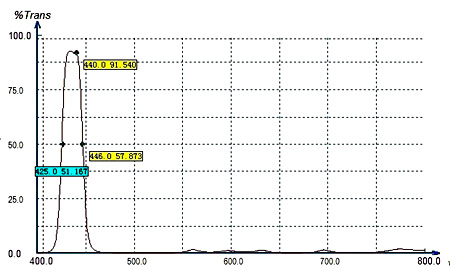

440+/-10nm Supper Narrow Bandpass Filter, with FWHM=20nm and high transmission, also called 440nm Laser Interference Filter, more suitably used for 440nm blue laser devices.
|
|
 |
|
|
