Specifications:
|
Centre Wavelength(CWL):
|
customized
|
|
FWHM(50% point):
|
Customized
|
|
Transmission:
|
Tave>85%
|
|
Size:
|
customized, from 2x2mm to Dia. 110mm, +/-0.1mm
|
|
Thickness:
|
0.3~3mm
|
|
Surface quality:
|
60/40~20/40
|
|
Clear aperture:
|
>90%, or full surface coatings
|
|
Substrate:
|
vary customized, such as B270, BK7, crystal, float or sodalime glass etc.
|
¡ñ Different CWL and bandwidth can be customized for vary application or requirements.
¡ñ Singlet or bonded with other filters |
|

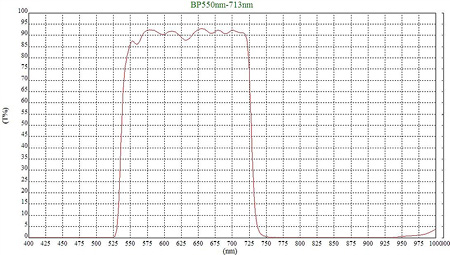

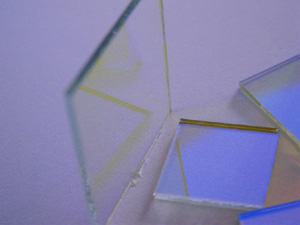

Bandpass Filters in visible light spectrum, designed with vary CWL or bandwidths according to the special requirements, to allow a certain range of visible light transmit but block or reflect other unnecessary range. Bandpass filters, based on the different CWL and bandwidth, the applications are vary, such as medical treatment, laser scanner, stage lamps, Spectrum Devices, Fluorescence Analytical Instruments, Biochemistry Devices,? Medical and clinical instrumentation, Telecommunications, and Analytical instrumentations etc.
|
|
 |
