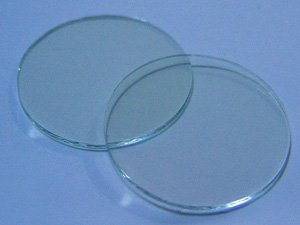

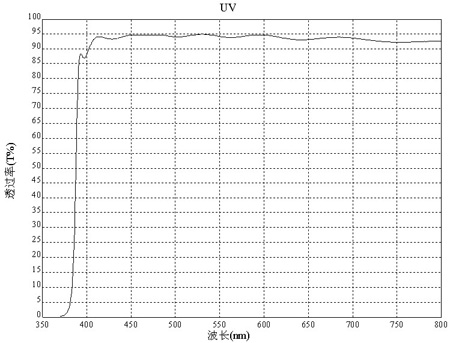

| 380nm, 395nm UV Longpass Filter |
|
.jpg)
|
|
Specifications:
|
Transmission:
|
T>85% @ 500-1100nm
|
|
Reflection:
|
Rave>99.8% @ 200-380nm
|
|
Size:
|
customized, from 2x2mm to Dia. 110mm, +/-0.1mm
|
|
Thickness:
|
0.3~3mm
|
|
Surface quality:
|
60/40~20/40
|
|
Clear aperture:
|
>90%, or full surface coatings
|
|
Substrate:
|
vary customized, such as B270, BK7, crystal, float or sodalime glass etc.
|
¡ñ High blocked rate in UV spectrum, VIS AR coatings available to reach T>98% @ 400-700nm
¡ñ Transparent filter, can be bonded with other filters for vary application.
¡ñ Customized or standard size of metal ring could be offered for the filter mounted.
|
|
|
|
|
|
UV Longpass filter, a type of transparent filter with UV blocked coatings on the substrate, completely to block the UV light but transmit the Visible light and NIR light. By blocking the UV light, the image forming on the sensor can reach a more true color quality, because UV light usually bring a little blue color to the image. Also, UV filter, because of it is a transparent colorless glass, it is usually used for a covering or protective glass. If AR coatings added on the filter, a little purple color when look at it in an angle.
|
|
.jpg)
|
|

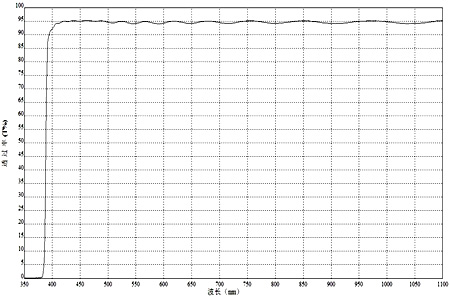

395nm UV Longpass Filter
|
|
|
|

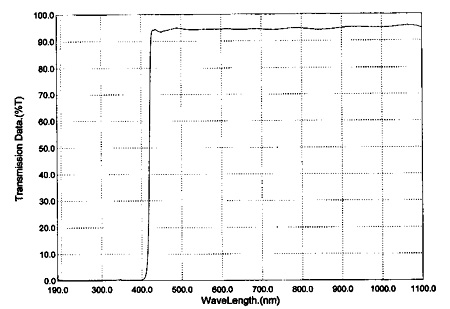

420nm UV Longpass Filter
|
|
.jpg)
|
|
|
