| Golden Yellow Color UV blocking Glass-UV Filters |
 |
|
Specifications:
|

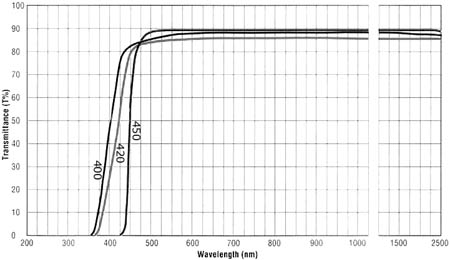

Transmission:
|
T>85% @ 400-1100nm, T=50% @ 390nm
|
|
Reflection:
|
Tave<=1% at UV blocking range
|
|
Size:
|
customized, from 2x2mm to Dia. 110mm, +/-0.1mm
|
|
Thickness:
|
2~3mm
|
|
Surface quality:
|
60/40~20/40
|
|
Clear aperture:
|
Full clear or with protective bevel
|

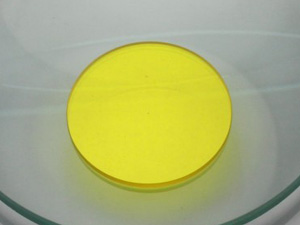

¡ñ Yellow color or said more like golden, color glass, absorbing the UV light while transmit visible and NIR light.
¡ñ Thickness at least 2mm to ensure the deep blocked rate
|
| |
|
|
| Yellow UV Glass, is a golden color glass absorbing the UV light, but transmit the visible and NIR light. As no coatings on the glass, it is with a higher scratch resistance and much easier for cleaning. So it is commonly used as a protective glass in front of NIR imaging systems. |
|
 |
|
|
