Specifications:
|
Transmission:
|

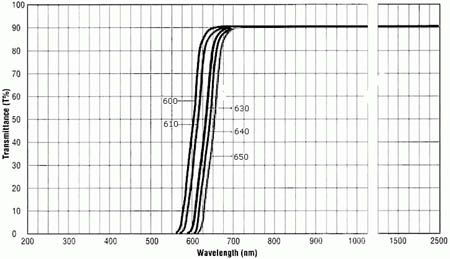

T>86% @ visible red light spectrum and NIR light spectrum
|
|
Reflection:
|
Tave<=1% @ 400-600nm
|
|
Size:
|
Customized, any size and shapes
|
|
Thickness:
|
2~3mm
|
|
Surface quality:
|
80/50~60/40
|
|
Clear aperture:
|
Full clear or with protective bevel
|
|
Substrate:
|
Red color NIR Glass
|
¡ñ No coatings on the surfaces, perfectly used for protective glass of NIR imaging systems
¡ñ Different start points of transmission for vary application, including but not limited to, biomedical scan systems, NIR video surveillance cameras and other NIR optical imaging systems. |
|

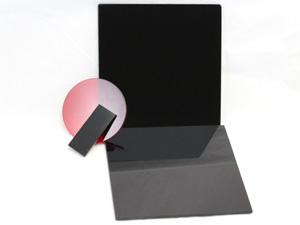

NIR Red Color Glass Filters are of from pure red color glass to dark red color glass, which allow visible red light and NIR light transmit, but absorb the other visible light. With the full series based on the different start transmission point, this kind of NIR red filter can be used for vary application, such as, including but not limited to, biomedical identifications, laser bar code scanner, video surveillance systems and video phones etc.
|
|
|
