EFL
|
F No.
|
Sensor
|
FOV (DxH)
|
Mount
|
Resolution
|
Distortion
|
Structure
|
|
|
2.5mm
|
F2.8
|
1/2.5”
|
170°x130°
|
M12x0.5
|
5MP
|
-22%
|
Metal + 6G
|
|
|
2.95mm
|
F2.9
|
1/2.5"
|
158.7°x125°
|
M12x0.5
|
8MP
|
-15%
|
Metal + 7G
|
|
|
3.3mm
|
F2.8
|
1/.25"
|
130°x105°
|
M12x0.5
|
8MP
|
-5%
|
Metal + 7G
|
|
|
3.6mm
|
F3.0
|
1/2.5"
|
88°x73..5°
|
M12x0.5
|
3MP
|
-0.3%
|
Metal + 2G2P
|
|
|
3.9mm
|
F3.0
|
1/2.5"
|
90°x75°
|
M12x0.5
|
3MP
|
-0.35%
|
Metal + 2G2P
|
|
|
4.3mm
|
F2.3
|
1/2.5"
|
80°x69°
|
M12x0.5
|
3MP
|
-0.2%
|
Metal + 3G1P
|
|
|
7.5mm
|
F3.0
|
1/2.5"
|
57°x50°
|
M12x0.5
|
3MP
|
-1.5%
|
Metal + 2G2P
|
|
|
|

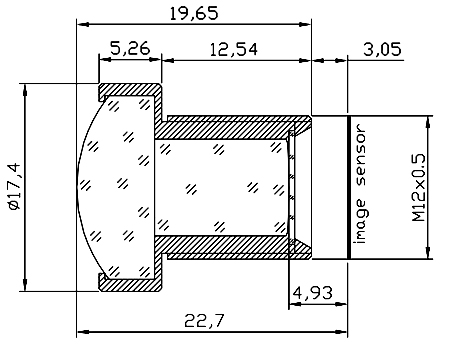

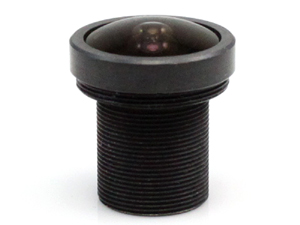

L1184 2.5mm F2.8 1/2.5" 5MP M12x0.5 Board Lens To the top
|
|
|
|
|
Model No.
|
L1184
|
|
Focal Length
|
2.5mm
|
|
Relative Aperture
|
F2.8
|
|
Sensor Size
|
1/2.5"
|
|
Back Focal Length
|
4.3mm
|
|
Angle of View
|
D x H x V=170°x130°x98°
|
|
Optical Distortion
|
<-22%
|
|
Mount Size
|
M12 x 0.5
|
|
TTL
|
22.70mm
|
|
Definition
|
For multiply megapixels sensor
|
|
Construction
|
Metal + 6G + IR
|
|
|
|

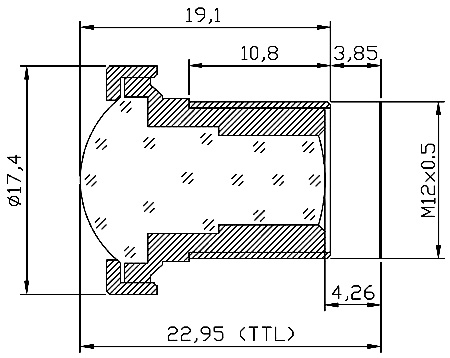

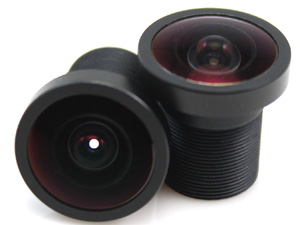

L1124 2.95mm F2.9 1/2.5" 8MP M12x0.5mm Mini Lens To the top
|
|
|
|
|
Model No.
|
L1124
|
|
Focal Length
|
2.95mm
|
|
Relative Aperture
|
F2.9
|
|
Sensor Size
|
1/2.5"
|
|
Back Focal Length
|
4.26mm
|
|
Angle of View
|
D x H x V=158.7°x125°x85°
|
|
Optical Distortion
|
<-15%
|
|
Mount Size
|
M12 x 0.5
|
|
TTL
|
22.95mm
|
|
Definition
|
For multiply megapixels sensor
|
|
Construction
|
Metal + 7G + IR
|
|
|
|

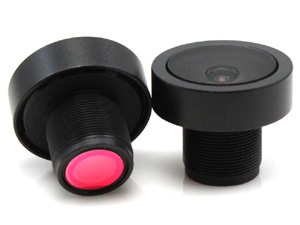

L1185 3.3mm F2.8 1/2.5" 5MP M12x0.5mm Mini Lens To the top
|
|
|
|
|
Model No.
|
L1185
|
|
Focal Length
|
3.3mm
|
|
Relative Aperture
|
F2.8
|
|
Sensor Size
|
1/2.5"
|
|
Back Focal Length
|
5.90mm
|
|
Angle of View
|
D x H x V=130°x105°x77.6°
|
|
Optical Distortion
|
<-5%
|
|
Mount Size
|
M12 x 0.5
|
|
TTL
|
23mm
|
|
Definition
|
For multiply megapixels sensor
|
|
Construction
|
Metal + 7G + IR
|
|
|
|

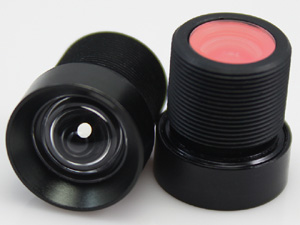

L1121 3.6mm F3.0 1/2.5" 3MP Low Dist. M12 Lens To the top
|
|
|
|
|
Model No.
|
L1121
|
|
Focal Length
|
3.6mm
|
|
Relative Aperture
|
F3.0
|
|
Sensor Size
|
1/2.5"
|
|
Back Focal Length
|
3.45mm
|
|
Angle of View
|
D x H x V=87.90°x73.54°x62.74°
|
|
Optical Distortion
|
<-0.35%
|
|
Mount Size
|
M12 x 0.5
|
|
TTL
|
19mm
|
|
Definition
|
For multiply megapixels sensor
|
|
Construction
|
Metal + 2G2P + IR
|
|
|
|

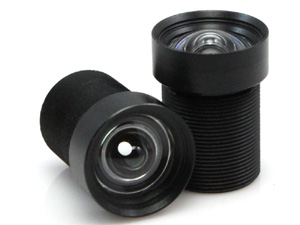

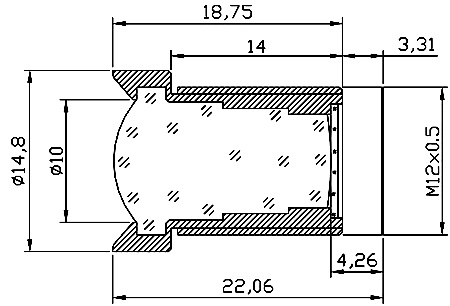

L1123 3.9mm F3.0 1/2.5" 3MP Low Dist. M12 Lens To the top
|
|
|
|
|
Model No.
|
L1123
|
|
Focal Length
|
3.9mm
|
|
Relative Aperture
|
F3.0
|
|
Sensor Size
|
1/2.5"
|
|
Back Focal Length
|
4.26mm
|
|
Angle of View
|
D x H x V=92°x75°x60°
|
|
Optical Distortion
|
<-0.35%
|
|
Mount Size
|
M12 x 0.5
|
|
TTL
|
22.06mm
|
|
Definition
|
For multiply megapixels sensor
|
|
Construction
|
Metal + 2G2P + IR
|
|
|
|

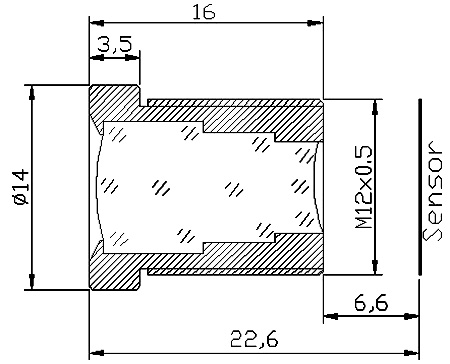

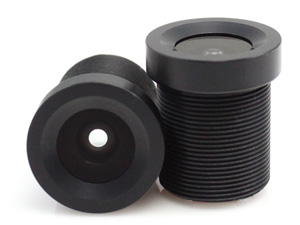

L1128 4.3mm F2.3 1/2.5" 3MP Low Dist. M12 Lens To the top
|
|
|
|
|
Model No.
|
L1128
|
|
Focal Length
|
4.3mm
|
|
Relative Aperture
|
F2.3
|
|
Sensor Size
|
1/2.5"
|
|
Back Focal Length
|
6.6mm
|
|
Angle of View
|
D=90°
|
|
Optical Distortion
|
<-2.0%
|
|
Mount Size
|
M12 x 0.5
|
|
TTL
|
22.60mm
|
|
Definition
|
For multiply megapixels sensor
|
|
Construction
|
Metal + 3G1P + IR
|
|
|
|
L1186 7.5mm F3.0 1/2.5" 3MP Low Distortion M12 Lens To the top
|
|
|
|
|
Model No.
|
L1186
|
|
Focal Length
|
7.5mm
|
|
Relative Aperture
|
F3.0
|
|
Sensor Size
|
1/2.5"
|
|
Back Focal Length
|
2.85mm
|
|
Angle of View
|
D x H=57°x50°
|
|
Optical Distortion
|
<-1.5%
|
|
Mount Size
|
M12 x 0.5
|
|
TTL
|
10.8mm
|
|
Definition
|
For multiply megapixels sensor
|
|
Construction
|
Metal + 2G2P + IR
|
|
|
|
|
Objective Lenses are very customized products according to the specific applications. If our current lenses can not match the applications, development of customized lenses are available based on the project's requirements or specifications offerd by customers.
|
