 Home > Optical Lenses > M12 Small Lenses > M12 Board Lenses > Large Aperture F1.8 Board Lenses

Large Aperture F1.8 Board Lenses

Large Aperture Board Lenses are designed for applications that require more light to pass into image sensors in the hope to get the brighter images, specially used for environments with no enough natural light or no positive light sources. With LED light sources, they can be better for night vision surveillance.

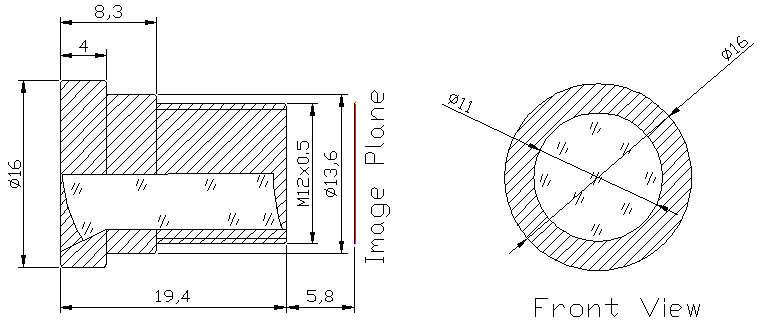

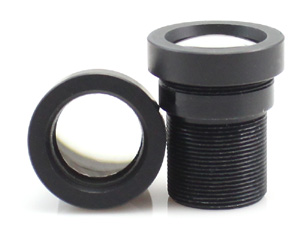

25mm F2.0 1/3" M12x0.5 Board Lens
Model No.
L1072
Focal Length
25mm
Relative Aperture
F2.0
Sensor Size
1/3"
Flange Back Focal Length
5.8mm
Angle of View
D=13° for 1/3”
Min. Operation Distance
0.3m
Mount Size
M12 x 0.5
TTL
25.2mm
Construction
5 Glass Elements
Optical Filters (optional)
IR Cutoff Filters or other filter for choice

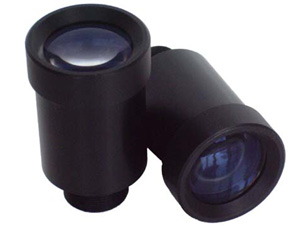

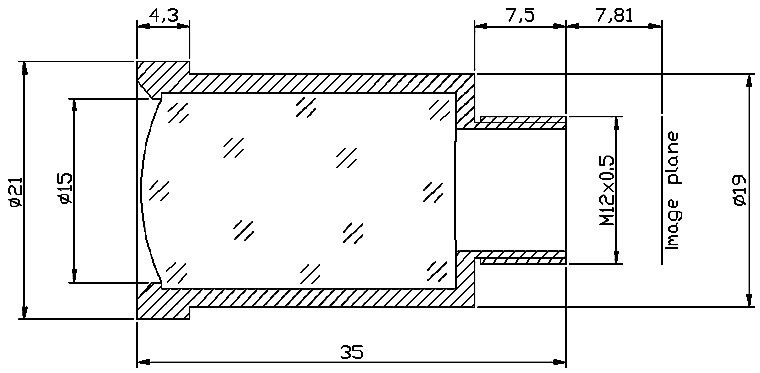

25mm F1.8 1/2" M12x0.5mm Board Lens
Model No.
L1105
Focal Length
25mm
Relative Aperture
F1.8
Sensor Size
1/2"
Flange Back Focal Length
7.81mm
Angle of View
D=18° for 1/2” CCD
Min. Operation Distance
0.4m
Mount Size
M12 x 0.5
TTL
42.81mm
Construction
5 Glass Elements
Lenoptec engages in developing various optical products to offer the integrative solution for a optical system. Each system or device may require the unique specifications to reach the expected function, to help the device reach a most compact or compatible structure. With our experienced team and full equipments, we have been trying to sastify our customer's demands by best services and cost-effective solutions.
