Short OPL or TTL Wide Angle Board Lenses |
|
|
|

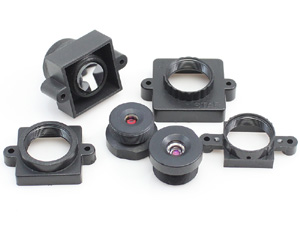

Optical Path Length is measured as the distance from the up front point of a lens to the image sensor, equal to the terms of Through-the-lens (TTL) metering in photography. This series of Short OPL board lenses are designed for some mini applications, which require the lens to be mounted in a very small space. This type of lens also require to used with short lens holder to match the short back focal length and TBL.

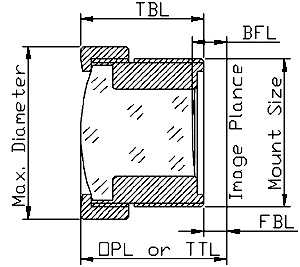

Refer to the upper right image, OPL or TTL is different from TBL. TBL (Total Barrel Length) is a mechanical length, which is equal to OPL minus FBL (Flange Back Length). So to choose a suitable lens for small space device, OPL or TTL is the most important factor.
|
|
|
Model No.
|

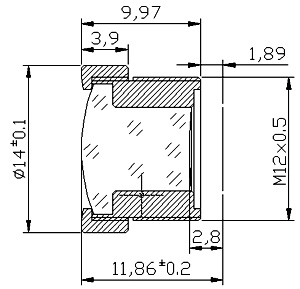

LOT2025-4-11.86
|
Focal Length
|
2.0mm
|
Relative Aperture
|
F2.5
|
Sensor Size
|
1/4” or 1/5”
|
Back Focal Length
|
2.8mm
|
Angle of View
|
D=100°, H=76° for 1/4”
|
Min. Operation Distance
|
0.3m
|
Mount Size
|
M12 x 0.5 or M8 x 0.5
|
TTL
|
11.86
|
Optical Distortion
|
<-30%
|
Optical Filters (optional)
|
IR Cutoff Filters or other filter for choice
|
|
|
|
|
|
|
Model No.
|

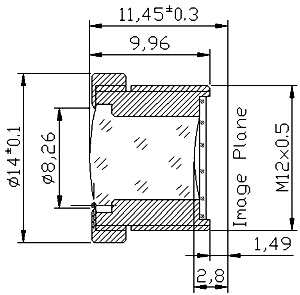

LOT2525-11.45
|
Focal Length
|
2.5mm
|
Relative Aperture
|
F2.5
|
Sensor Size
|
1/3” or 1/4”
|
Back Focal Length
|
2.8mm
|
Angle of View
|
D=150° for 1/3” or D=130° for 1/4”
|
Min. Operation Distance
|
0.3m
|
Mount Size
|
M12 x 0.5mm or M7 x 0.35mm
|
TTL
|
11.45mm
|
Optical Distortion
|
<-50%
|
Optical Filters (optional)
|
IR Cutoff Filters or other filter for choice
|
|
|
|
|
Model No.
|

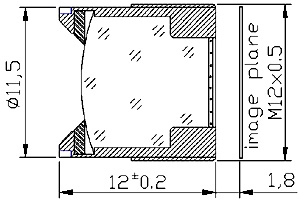

L2820-4-12
|
Focal Length
|
2.8mm
|
Relative Aperture
|
F2.0
|
Sensor Size
|
1/4”
|
Back Focal Length
|
2.5mm
|
Angle of View
|
D=92°, H=65° @ 1/4”
|
Min. Operation Distance
|
0.3m
|
Mount Size
|
M12x0.5mm
|
TTL
|
12+/-0.2mm
|
Optical Distortion
|
<-30%
|
Optical Filters (optional)
|
IR Cutoff Filters or other filter for choice
|
|
LenOpTec has been developing different types of M12 Lenses for various applicatons. Based on customer's special applications or devices, we are trying to offer the integrated optical solutions, not only to control the costs for different parts, but also to reach the best performance for the project. Not all products will be shown on the website, also, some special devices will require customized dimension of mechanical structure to help the device reach a most compact appearance. So if you have any other requirements for lenses, please contact us anytime. We will reply your inquiry in 24 hours in work days.
|
|
|
